CELESTION CDX1-1746

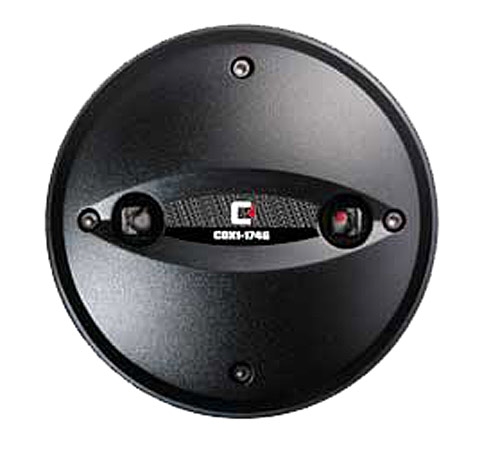

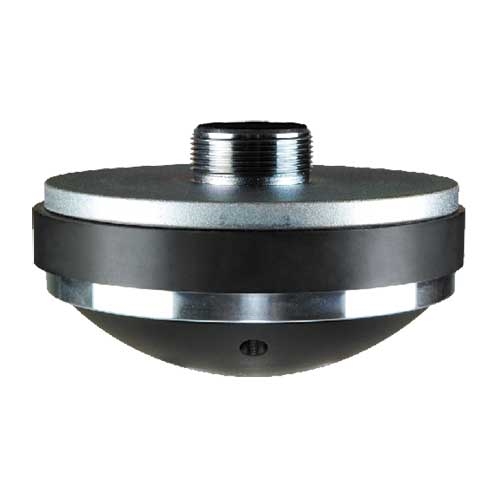

Celestion CDX1-1746 1" Ferite High Frequency Driver



Alternative Views:


Our Price: $79.99


Availability:: Usually Ships in 24 to 48 Hours
Product Code: CELESTION-CDX1-1746
Qty:

Description


Celestion CDX1-1746 Ferrite High-Frequency Driver

Size: 1", 25mm
Power Rating: 40W RMS
Frequency Response: 1200-20kHz
Sensitivity: 110db
Impedance: 8 ohms
Voice Coil: 1.75" edgewound copper
Diaphragm: PETP film
Recommended Crossover Frequency: 2.2kHz
Weight: 5.1 lbs.
Screw-on

    • 1" exit, ferrite magnet compression driver with 1.75" edgewound copper clad aluminium voice coil
    • 40Wrms power handling (AES standard) and 110dB sensitivity
    • Sound Castleā„¢ clamping ensures even pressure on diaphragm assembly for reduced distortion
    • One piece PETP diaphragm and surround
    • Finite Element Analysis (FEA) used to optimise both magnet assembly and acoustic design
    T5487

    More information here.
