18 SOUND XR1496C

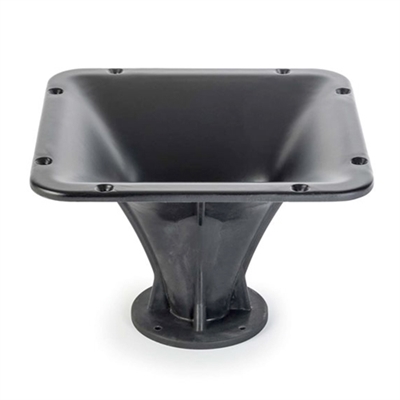

18 SOUND XR1496C Horn Flare



Our Price: $169.99


Availability:: Usually Ships in 24 to 48 Hours
Product Code: 18-SOUND-XR1496
Qty:

Description


18 Sound XR1496C 1.4" Horn Flare

Size: 1.4" throat
Coverage: 90°H x 60°V
Material: Composite Material
Crossover Frequency: 800 Hz
Weight: 4 lbs.

The XR1496C has been designed in order to obtain a smooth frequency response maintaining constant coverage and directivity pattern, and avoiding the midrange narrowing effect as well as high frequency beaming problems. With a throat entry of 1.4-inch, the XR1496C has been developed to reach the optimum performance when it will coupled with 1.4-inch exit Eighteen Sound high frequency compression drivers. The XR1496C maintains nominal 90° Horizontal x 60° Vertical pattern control, providing consistent on-axis and off-axis frequency response from 1.2kHz to 16kHz in both horizontal and vertical planes.

More information here.

Horn directivity is constant down to 1.2kHz.


Features
  • 1.4” throat inch entry
  • High damping composite structure
  • Uniform on-axis and off-axis frequency response
  • 90° x 60° horizontal and vertical constant coverage
  • Very low distortion at high sound pressure
  • Optimized weight thanks to composite material structure
