CELESTION CDX1-1425

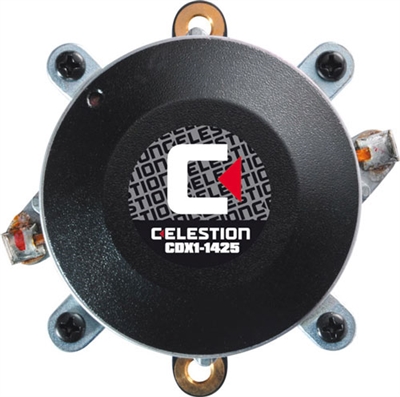

Celestion CDX1-1425 1" Neodymium High Frequency Driver



Alternative Views:


Our Price: $99.99


Availability:: Usually Ships in 24 to 48 Hours
Product Code: CELESTION-CDX1-1425
Qty:

Description


Celestion CDX1-1425 Neodymium High-Frequency Driver

Size: 1", 25mm
Power Rating: 25W RMS
Frequency Response: 2k-20kHz
Sensitivity: 108db
Impedance: 8 ohms
Voice Coil: 1.4" edgewound copper
Diaphragm: Aluminum film
Recommended Crossover Frequency: 2.5kHz
Magnet: Neodymium
Weight: 1.1 lbs.
Flange: (2 x M6 holes on 76mm/3in PCD)

  • 1" exit neodymium compression driver with 1.4" copper clad aluminium voice coil
  • 25W RMS power handling (AES standard) and 108dB sensitivity
  • Copper sleeve on pole reduces inductive rise for improved HF performance
  • Ferrofluid in magnet gap prevents sensitivity loss through thermal compression
  • Aluminium diaphragm combined with elastomer surround delivers lower distortion performance
  • Finite Element Analysis (FEA) used to optimise both magnet and acoustic design
  • Suitable for 2-way and 3-way systems, and line arrays

More information here.
