Peavey RX14 1" High Frequency Driver

Our Price: $69.99
Sale Price: $65.99
Savings: $4.00

Quantity in Stock:(Out of Stock)

Availability:: Usually Ships in 24 to 48 Hours
Product Code: PEAVEY-RX14

Description Technical Specs

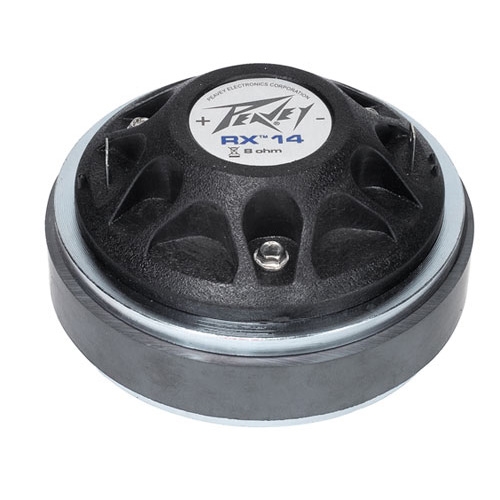

Peavey RX14 High Frequency Driver


Size: 1" screw-on
Diaphragm: Titanium
Power Rating: 30W AES
Frequency Response: 1.5-20kHz
Sensitivity: 104db
Impedance: 8 ohms
Voice Coil: 1.4" Copper-clad aluminum wire with a high temperture Kapton bobbin

Recommended X-over: 2k
Peavey Part Number:03495480

The RX14 compression driver is designed for excellent driver performance, reliability and power handling. With over 25 years experience in compression driver design and manufacturing, Peavey is proud to add the all-new RX14 compression driver to its transducer line.

The RX14 is capable of higher power handling than most smiliar-sized compression drivers and incorporates a 1.4" voice coil. The RX14 is designed with a solid one-piece titanium diaphragm and a Kapton high-temperature coil former with copper-clad aluminum coil wire for an increase in the overall motor efficiency. The one-piece titanium diaphragm reduces the amount of moving mass, extending the high frequency response of the driver. Ferrofluid cooling is used in the RX14 for improved reliability and smoother frequency response.

Every RX14 driver is subjected to a complete series of computer-based tests designed to ensure total adherence to specifications.


The RX14 has been designed and engineered for use with Peavey horns. However, any horn may be used as long as it consists of a standard 1 3/8” – 18 standard thread coupling. The RX14 is an excellent choice for upgrading an older system at minimal expense.
