SND-44-RD Replacement Diaphragm

Our Price: $49.99
Sale Price: $44.99
Savings: $5.00

Quantity in Stock:4
Availability:: Usually Ships in 24 to 48 Hours
Product Code: P-AUDIO-SND44.8RD

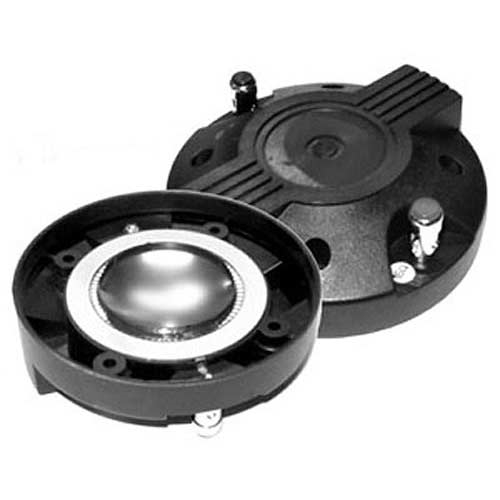

P Audio SND-44-RD

Replacement diaphragm for P Audio SND44 compression driver, Mackie 0013925, DN10/1704-8, DN10-1704-8, DN10 1704-8, Mackie SA1232Z, SA1521, SA1521Z, SA1530, SA1530Z, SA1532Z cabinet drivers, as well as others, 8 ohms

Mackie also uses a different driver in some models that looks identical to the SND44, but is bigger. We recommend pulling the diaphragm off the driver and comparing these measurements:

SND 44 Driver:
Total Diameter of cap - 4"
VC Diameter - 1.769"
Bolt Hole (side by side) - 2.09"
Bolt Hole (corner to corner) - 2.96"
Thickness of cap -1.32"
Terminal centers - 3.24"

Average Rating: Average Rating: 4 of 5 4 of 5 Total Reviews: 1 Write a review »

  0 of 0 people found the following review helpful:
4 of 5 SND44.8RD April 13, 2017
Reviewer: dave ray from San Rafael, CA United States
I've used these replacement diaphragms before for Mackie horns--they fit perfectly and work fine.

Was this review helpful to you?
