LaVoce CSF153.00K 15" Coaxial Speaker

Specifications
Size: 15"
Power Rating: 350W AES LF/ 60W AES HF
Frequency Response: 50-20kHz
Sensitivity: 98dB/108dB
Impedance: 8 ohms
Voice Coil: 3.0" LF/ 1.7" HF
Resonant Frequency: 50 Hz
Weight: 15 lbs.

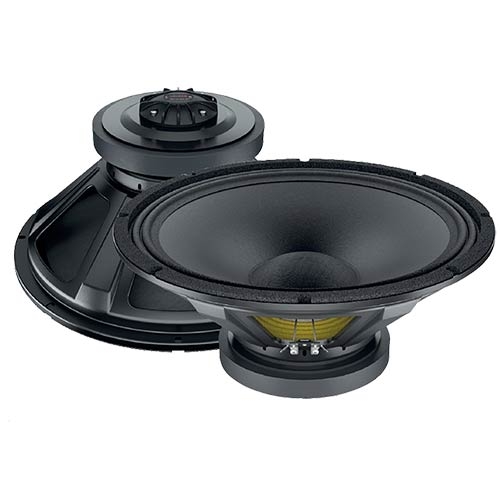

The CSF153.00K is a high performance 15" coaxial speaker with a steel basket. It offers excellent power handling capability with high sensitivity over the whole frequency band. Includes attached HF driver. No horn.

3.0 INCH LF COPPER VOICE COIL
1.7 INCH HF EDGEWOUND CCA VOICE COIL
98/108 dB/SPL SENSITIVITY
700 WATT PROGRAM POWER HANDLING
FEM OPTIMIZED COMMON MOTOR,
PATENTED IIS PHASEPLUG AND DIAPHRAGM
50 - 20000 Hz FREQUENCY RANGE
80° NOMINAL COVERAGE
POLYIMIDE HF DIAPHRAGM
DOUBLE ALUMINIUM DEMODULATING RING
COMPACT AND LIGHTWEIGHT DESIGN

PDF Spec Sheet.
