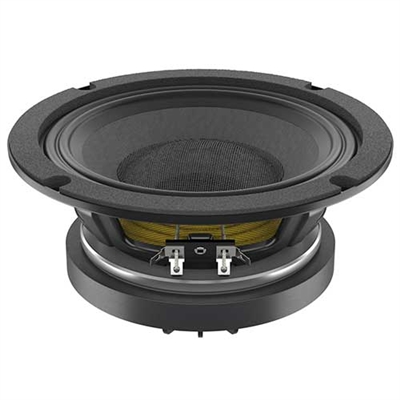

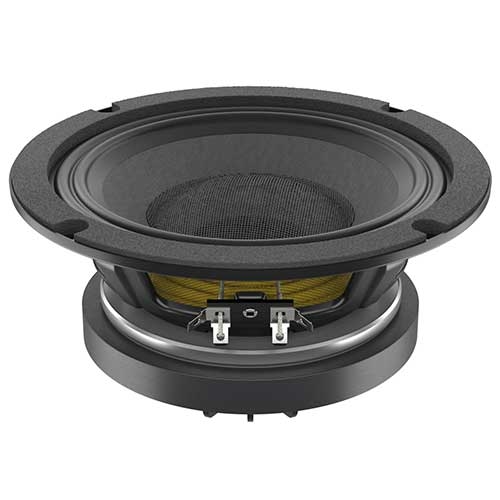

LaVoce CSF061.70K 10" Coaxial Speaker

Specifications
Size: 10"
Power Rating: 150W AES LF/ 35W AES HF
Frequency Response: 95-20kHz
Sensitivity: 92dB
Impedance: 8 ohms
Voice Coil: 1.7" LF/ 1.4" HF
Resonant Frequency: 97 Hz
Weight: 4.4 lbs.

The CSF061.70K is a high performance 6.5" coaxial speaker with a steel basket. It offers excellent power handling capability with high sensitivity over the whole frequency band. No horn.

1.7 INCH LF COPPER VOICE COIL
1.4 INCH HF EDGEWOUND CCA VOICE COIL
92 dB/SPL SENSITIVITY
300 WATT PROGRAM POWER HANDLING
FEM OPTIMIZED COMMON MOTOR,
PATENTED IIS PHASEPLUG AND DIAPHRAGM
45 - 20000 Hz FREQUENCY RANGE
100° NOMINAL COVERAGE
POLYIMIDE HF DIAPHRAGM
DOUBLE ALUMINIUM DEMODULATING RING
COMPACT AND LIGHTWEIGHT DESIGN

PDF Spec Sheet.
